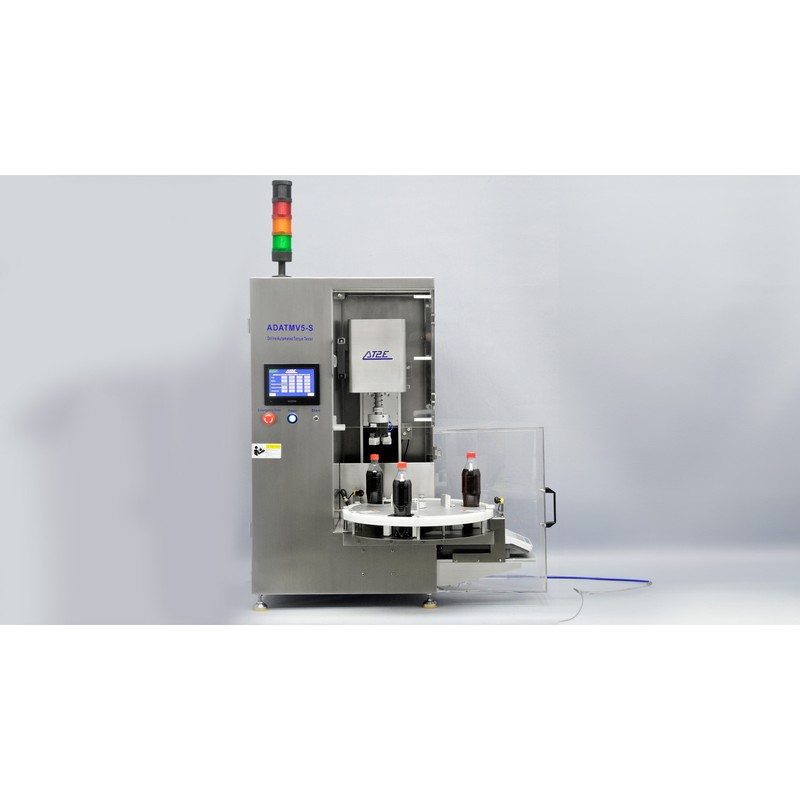

ADATMV5 S – On line Automated Torque Tester

• Description
• Option
• Photos

Technical specifications: CFR21-11 / FDA compatible

• Free operator torque controller ( on-line )
• Legal weighing control suitable in option
• Secure seal test suitable ( automatic bubble point control )
• Using by touch screen
• Measures in opening and closing directions
• Measuring range: 00.00 to 99.00 Kgf.cm
• 6 measuring cycles: Torque closing / Reach position / Release + break / Release + break + over screw / Non-destructive test /– MORE ON REQUEST
• Units: Kgf.cm / Inch.lbs / daN.cm / N.cm / N.m
• Rotating angle & speed adjustable under certain cycle
• Accuracy: ± 0.5 % of full scale
• 30 products memory
• 10 thresholds (limits) option
• 10 operators memory
• Configuration by protected password (administrator)
• Memorization up to 9999 measures
• Dynamic display: statistics / hour / date
• Display: product name / operator / batch N° / line N°
• 1 RS232 output and 1 printer output (software & printer)
• Language: English / French / Spanish
• Delivered with calibration certificate ASTM/ NIST/COFRAC/ DKD ENAC / UKAS
• Easy-fast selector for cycles
• Customized cycles
• Special pneumatic chuck available
• Auto-mode
• Special auto mode with head number – filler storage
• Special multi format system for both bottle and preform
• Dynamometric system
• 110 / 230 V – 50/60 Hz

Automated part:

• Safety door
• Automatic zero before restarting cycle
• Settable height of column for all samples

Mechanical specifications:

• Stainless steel Frame
• Choice of measuring chucks: Beverage / Cosmetic / Pharmacy
• Dimensions: 1090 (L) x 710 (W) x 1120 (H) mm
• Weight: 120 kg
