Đồng hồ đo lưu lượng kiểu siêu âm UFL-30 Tokyokeiki - Ultrasonic Flowmeter UFL-30

Mã sản phẩm:

UFL-30

Hãng sản xuất:

Tokyokeiki

Xuất xứ:

Nhật Bản

Email:

sale01@tmpvietnam.com

Chia sẻ:

Số lượng

Chi tiết sản phẩm

Tăng Minh Phát đại lý chính hãng sản phẩm Tokyo Keiki tại Việt Nam

Link sản phẩm hãng: https://www.tokyokeiki.jp/e/products/ryutai.html

Link sản phẩm của Tăng Minh Phát: http://maymoctudonghoa.com/tokyo-keiki-vietnam/

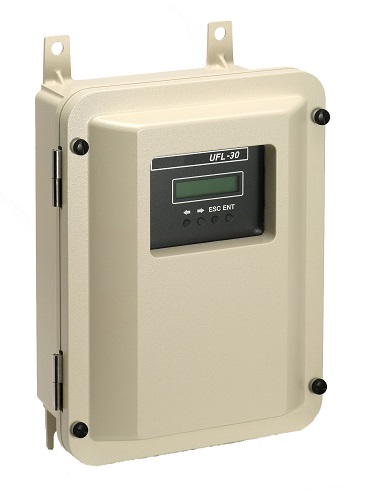

Ultrasonic Flowmeter UFL-30

Brochure[PDF]

Product data sheets

Inquiry

Ultrasonic Flowmeter UFL-30 Now Comes, No pressure-lose ! Small & Lightweight !
High accuracy !

The UFL-30 boasts +/- 1% high accuracy readings in a compact configuration, half the size of our former model.
TOKYO KEIKI was the first company in the world to develop an ultrasonic flowmeter for general industry in 1963. In 2008, we completed development of a highly reliable ultrasonic flowmeter - the "UFL-30 Series" - using our wealth of accumulated know-how and the latest in hardware technology.

The UFL-30 features clamp-on mounting which enables non-intrusive, no pressure loss installation on existing or new pipes. Ultrasound technilogy enables measurement of a variety of fluids regardless of electro-conductance.

The UFL-30 Series is a 6th generation system which offers higher accuracies and a wealth of functions.

Measures disordered velocity distribution
Multi-function
Easy operation
Abundant experience in various applications

Specifications

	Fluids	Homogeneous and sonically conductive fluids (water, waste water, industrial water, river water, seawater, purewater, etc.)
	Temperature range	-20℃ to +115℃ (depend on transducer) Note: 1) above also applicable to ambient temperature 2) For main unit, -10℃ to +60℃
	Turbidity	10000 mg/L or less
Pipes	Material	Materials which allow stable transit of ultrasonic waves such as steel, SUS, castings, ductile casting, PVC, FRPM, etc. Note: Applicable diameters may vary with material.
	Diameters	DN25mm to DN6000mm
	Lining	None, tar epoxy, mortar, etc.
Measurement Range	Converted to flow velocity -30 m/s to +30 m/s
Measurement Cycle	60 ms
Measurement Accuracy	D≧300mm, ±1% of reading, however ±0.008m/s for velocities less than 0.8m/s. D＜300mm, ±1% of reading, however ±0.02m/s for velocities less than 2m/s. Note: 1) For volumetric flow rate. 2)Fully developed and rotationally symmetrical flow profile required.
Repeatability	±0.5%
Range ability	1:300
Measurement Method	Ultrasonic pulse transit time difference method
