POWERFLEX 2200

Guided radar (TDR) level transmitter for the nuclear industry

• Continuous measurement of level, distance, volume, mass or dielectric constant
• Designed and tested for industrial nuclear environments
• Measuring range: 0.6…40 m / 2…131 ft
• -50…+150°C / -58…+302°F; -1…100 barg / -14.5…1450 psig

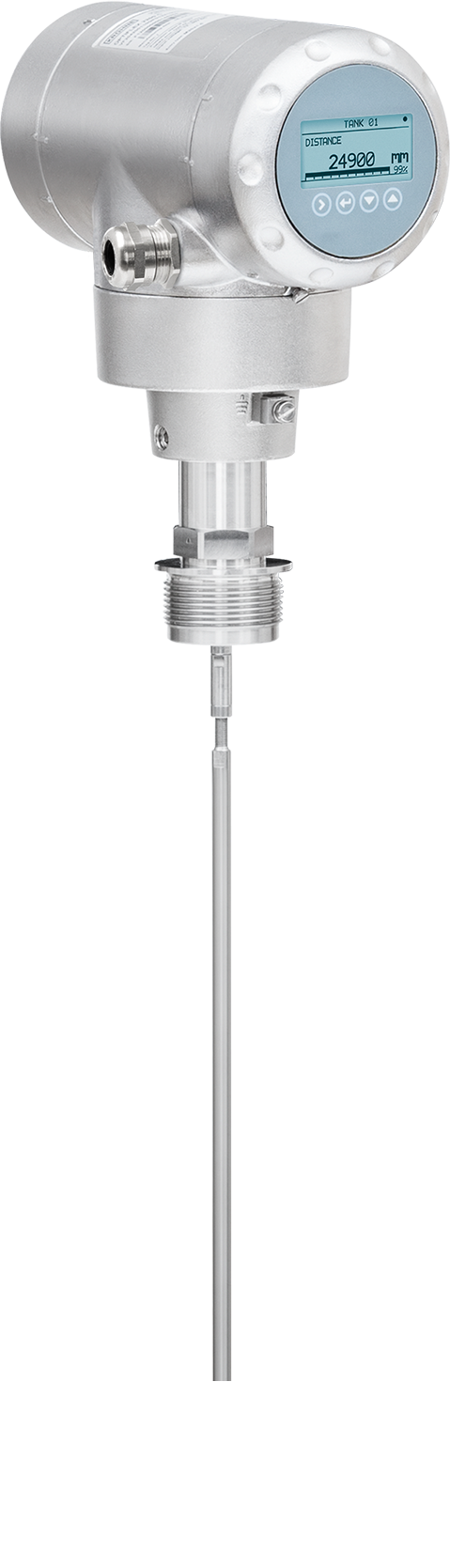

POWERFLEX 2200 – Version with single cable

• Overview
• Application
• Specifications
• Media

•

The POWERFLEX 2200 is a 2-wire 4…20 mA guided radar level transmitter based on the Time Domain Reflectometry (TDR) technology. The device is designed to operate in safety-related and non-safety-related liquid applications of the nuclear power industry. It has been qualified according to IEEE 323, IEEE 344 and RCC-E and conforms to nuclear standards such as ASME Section III or RCC-M.

Show more

Product highlights

• Referenced for nuclear applications
• Four versions to suit safety- and non-safety-related applications
• Conforms to nuclear standards (e.g. ASME Section III, RCC-M)
• Qualified according to IEEE Std 323, IEEE Std 344 and RCC-E
• For high radiation levels, the converter can be installed up to 450 m / 1476.38 ft away from the probe
• High resistance to radiation (probe and cable)
• Seismic qualification up to 300 m/s²
• Thermal aging qualification: +107°C / +224.6°F for 296 days
• DPR (Dynamic Parasite Rejection): the software dynamically eliminates false reflections caused by environmental disturbances and product build-up
• Quick coupling system: converter is rotatable and removable under process conditions
• Display keypad directly accessible without opening the cover
• Measuring range up to 40 m / 131 ft
• Design conforms to IEC 61508
• Conforms to IEC 61513
• The device has FDT1.2 DTM certification
