OPTIWAVE 3500

Radar (FMCW) level transmitter for liquids with hygienic requirements

• Continuous, non-contact level measurement in high and narrow, small and agitated tanks
• 80 GHz radar, gasket-free Lens antenna
• Measuring range: 0…50 m / 164 ft
• -40…+150°C / +302°F; -1…25 barg / -14.5…362 psig

•

OPTIWAVE 3500 – Version with PEEK antenna and Tri-clamp connection



• Overview
• Application
• Specifications
• Media

•

The OPTIWAVE 3500 is a 2-wire 80 GHz radar (FMCW) level transmitter for liquids in hygienic applications. It is designed for continuous, non-contact level measurement in the food and beverage as well as pharmaceutical industry. The device features a flush-mounted PEEK Lens antenna with a small beam angle and dead zone for precise measurement even in small and narrow tanks with agitators. It is equally suited for use on larger tanks, measuring distances of up to 50 m / 164 ft.

Show more

Product highlights

• 2-wire, loop-powered, with HART^®7
• Small dead zone and beam angle (8° with DN40 / 1.5” antenna, 10° with DN25 / 1” antenna )
• ± 2 mm / 0.08” accuracy
• Can measure in fast moving processes (≤60 m/min /| 196.85 ft/min)
• Empty tank spectrum function eliminates false reflections caused by tank internals
• Suitable for SIP (Sterilisation In Place) and CIP (Cleaning In Place)
• Large choice of hygienic process connections
• Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
• PACTware™, HART^® DDs and DTMs provided free of charge with full functionality
• Extensive sensor and process diagnostics
• Conform to FDA, EC1935/2004, EC2023/2006 and EU 10/2011
• 3-year warranty

Typical applications

General

• Hygienic level applications with finished and raw products
• For use in/on high and narrow storage tanks, small storage tanks and agitated tanks

Food and Beverage Industry

• Fruit extract
• Beverages (soft drinks, beer, wine, fruits juices etc.)
• Yeast
• Raw milk, cheese and other dairy products
• Chocolate
• Soup
• Vegetable oil
• CIP media (incl. slightly corrosive acids and caustic solutions)

Pharmaceutical Industry

• Purified water
• Solvents,alcohols, bases
• Slightly corrosive acids

Case studies

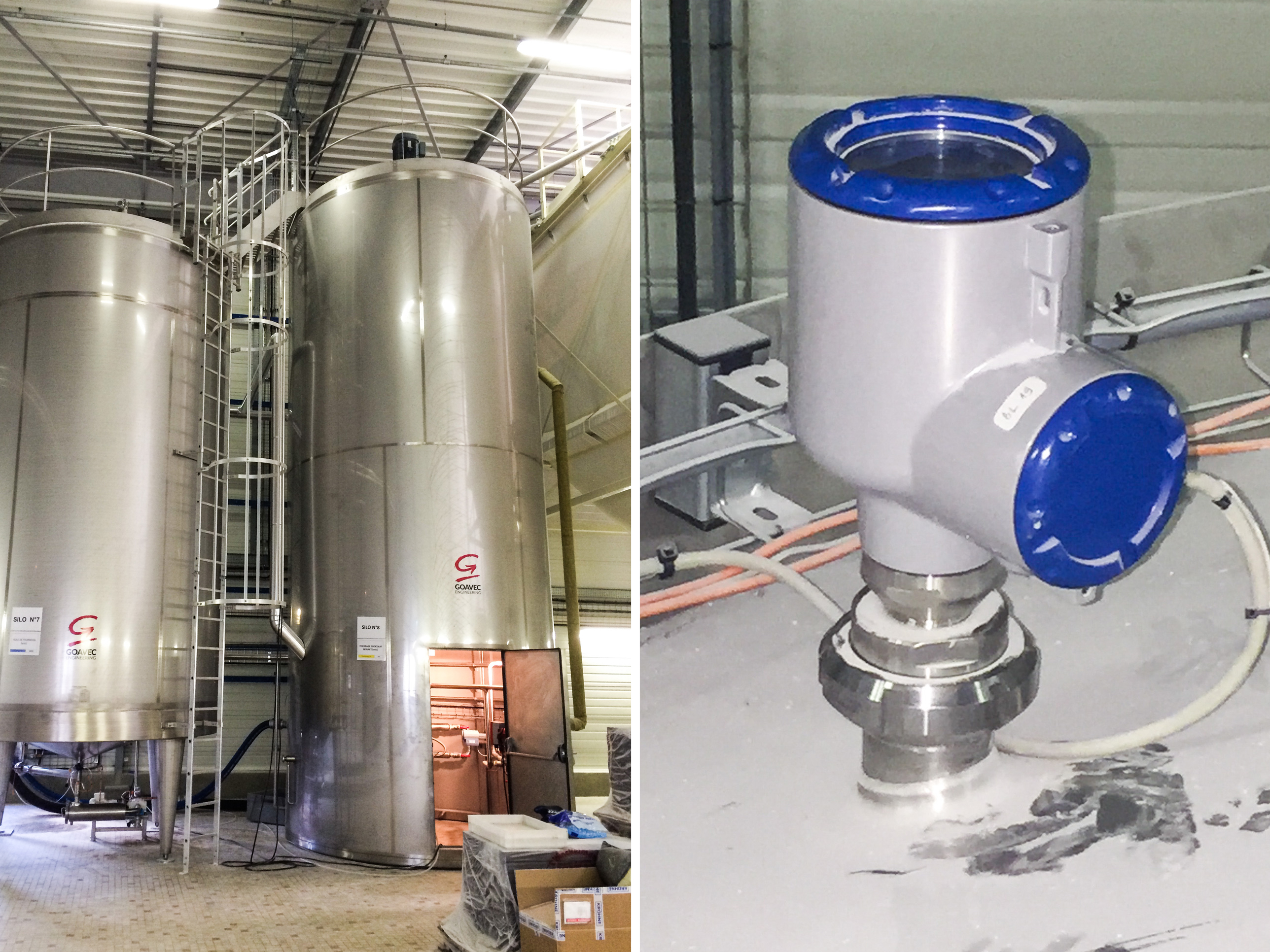

Level measurement of liquid chocolate in an industrial bakery

Application Note | Food & Beverage

• Improved stock management through automated level measurement
• Reliable and accurate readings despite viscous, sticky liquid and moving product surface
• Non-contact hygienic level measurement using 80 GHz radar with non-intrusive PEEK Lens antenna





View this article



View this document

Technical data

Product type	Level transmitter
Measurement principles	Radar
Level measurement type	Continuous measurement
Measured media	Liquids, Pastes, Slurries
Contact to measured medium	No
Interface measurement	No
Measuring range (liquids)	0…50 m/ 0…164 ft
Process pressure (relative)	-1…25 barg/ -14.5…362 psig
Process temperature	-40…+150°C/ -40…+302°F
Ambient temperature	-40…+80°C/ -40…+176°F
Wetted parts	Polyetheretherketone (PEEK)
Accuracy (liquids)	±2 mm/ ±0.08 in

Approvals/Standards

Certificates/Approvals Ex	ATEX, cQPSus, EAC, IECEx, NEPSI
Certificates/Approvals Hygienic	EHEDG
Certificates/Approvals Others	CRN
Ingress protection	IP66/68, NEMA4X/6P
NAMUR compliance	NE 107, NE 21, NE 43, NE 53

Communication

Digital outputs	HART®
Analogue outputs	4…20 mA

Process connections

Hygienic connections

Dairy screw (DIN 11851): DN40, DN50 Varivent®: N SMS (1145): 51 mm Tri-Clamp®: 1 1/2", 2" Clamp (ISO 2852): 25, 33.7, 38, 40, 51 NEUMO BioControl®: DN50 Aseptic screwed union (DIN 11864-1A): DN40, DN50
