OPTIWAVE 1400

New

Radar (FMCW) level transmitter for liquids in the water and wastewater industry

• Continuous, non-contact level measurement in tanks, pumping stations, open channels etc.
• Robust stainless steel design, waterproof (IP68 / NEMA 4X/6)
• 24 GHz radar, PP Drop antenna
• Measuring range: 0…20 m / 66 ft

OPTIWAVE 1400 with G thread



• Overview
• Application
• Specifications
• Media

•

The OPTIWAVE 1400 is a 2-wire 24 GHz radar (FMCW) level transmitter for liquids in water and wastewater applications. It is equally suited for continuous, non-contact level measurement of water from springs, rivers, lakes or the sea as well as rainwater, wastewater, sludge or other liquids in storage applications. The device features a robust stainless steel housing and comes IP68 / NEMA 4X/6 rated for use in open air installations prone to flooding.

Show more

Product highlights

• 2-wire, loop-powered, with HART^®7
• FMCW technology for greater resolution, just like the new 80 GHz generation
• Proven PP Drop antenna, insensitive to condensation or deposits
• Narrow beam angle (8°) for a sharp focus on the medium
• ± 2 mm / 0.08" accuracy
• Robust stainless steel design
• Maintenance-free concept
• Installation and operation made simple, safe and secure
• PACTware™ HART^® DD and DTM provided free of charge with full functionality
• 3-year warranty

Typical applications

Water and wastewater inductry

• Liquid level measurement during extraction, transport, storage and distribution of water from springs, rivers, lakes or the sea
• Level measurement in rainwater basins
• Open-channel flow measurement
• Level measurement of water, wastewater, sludge or other liquids in storage applications
• Level monitoring in wastewater pumping stations
• Floodwater alarm
• Level measurement of liquids in plastic tanks (e.g. IBC)

Case studies

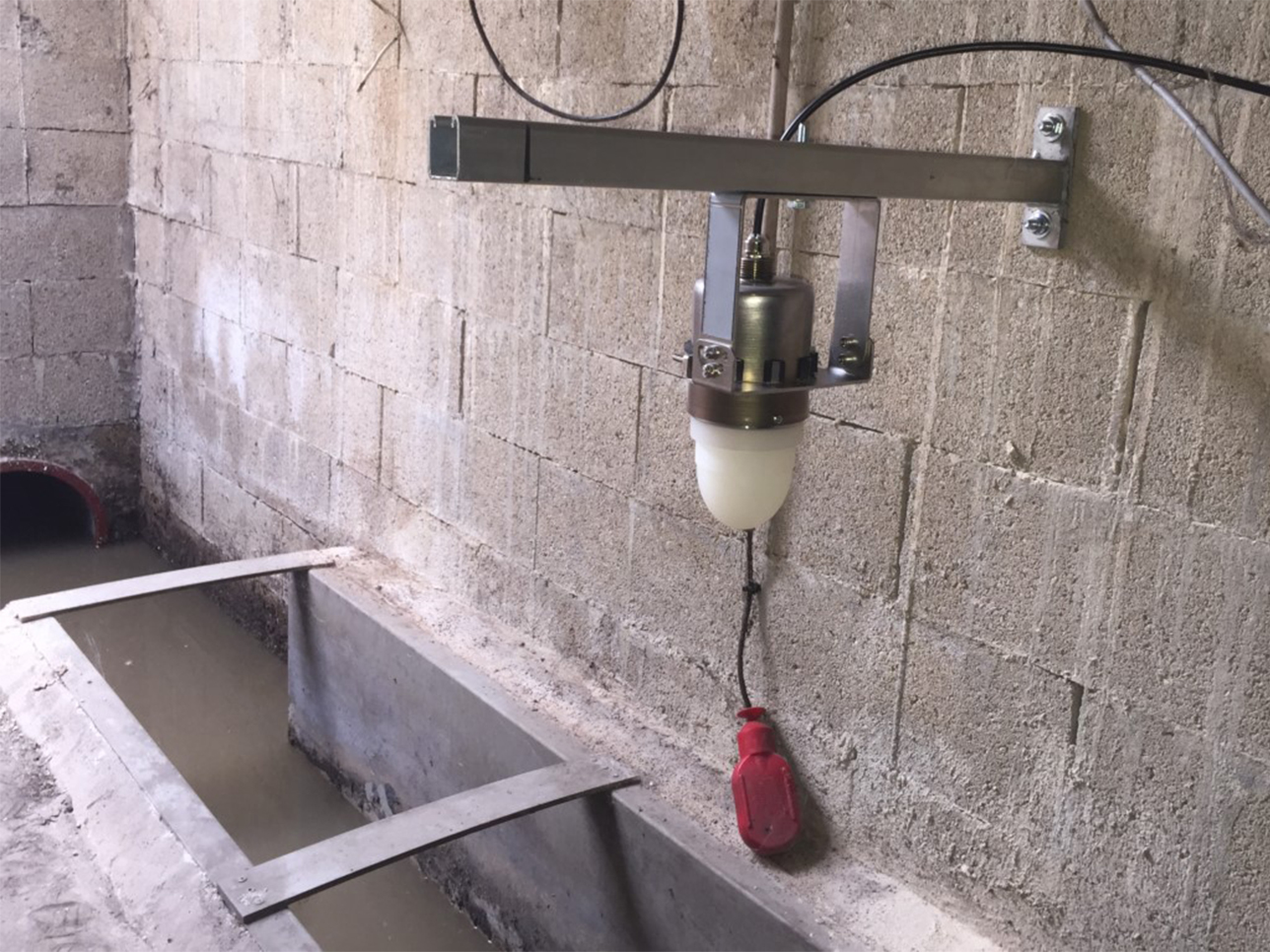

Flow measurement of wastewater in an open channel

Application Note | Water & Wastewater

• Continuous radar level measurement for the calculation of wastewater quantities at the inlet of a wastewater treatment plant
• Cost-effective alternative to ultrasonic level measurement in a venturi channel
• Reliable inlet flow measurement for balancing the inlet and outlet of wastewater





View this article



View this document

Technical data

Product type	Level transmitter
Measurement principles	Radar
Level measurement type	Continuous measurement
Measured media	Liquids
Contact to measured medium	No
Interface measurement	No
Measuring range (liquids)	0…20 m / 0…66 ft
Process pressure (relative)	-1…3 barg/ -14.5…43.5 psig
Process temperature	-40…+80°C/ -40…+176°F
Ambient temperature	-40…+80°C/ -40…+176°F
Wetted parts	Austenitic stainless steel (1.4404/316L), Polypropylene (PP)
Accuracy (liquids)	±2 mm/ ±0.08 in

Approvals/Standards

Ingress protection	IP68, NEMA4X/6
NAMUR compliance	NE 107, NE 43, NE 53

Communication

Digital outputs	HART®
Analogue outputs	4…20 mA

OPTIWAVE 1400

Download Center

• Technical datasheets and handbooks
• Flyers and brochures
• Certificates and approvals
• Software and driver



View downloads related to this product
