VEGAPULS 61

Radar sensor for continuous level measurement of liquids

For simple process conditions

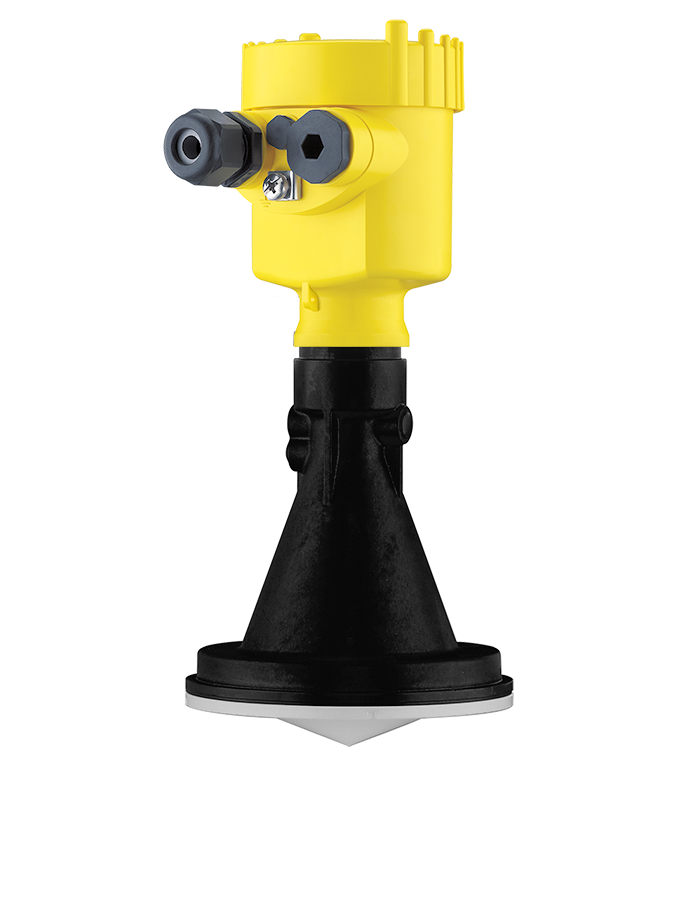

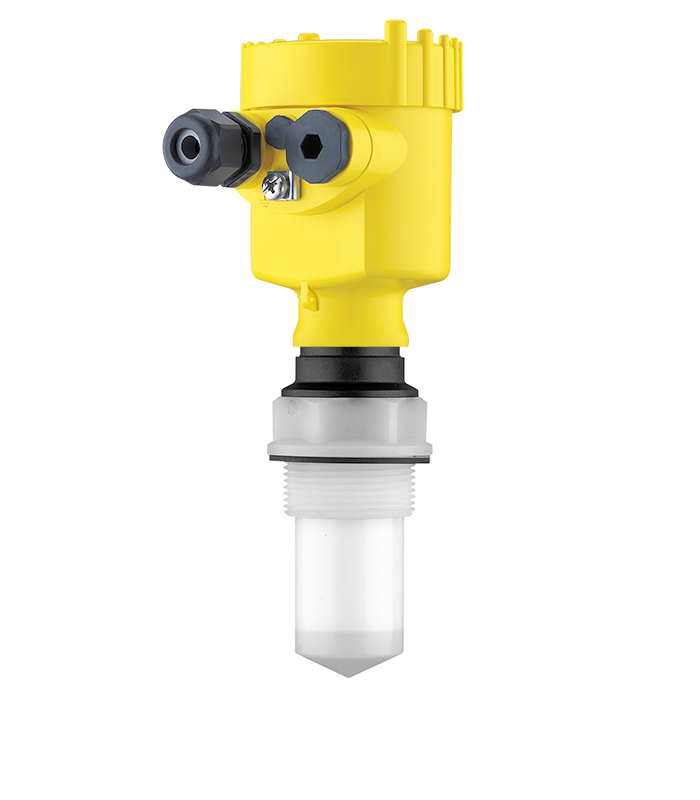

with encapsulated horn antenna (ø40 mm) with plastic horn antenna (ø80 mm)

Application area

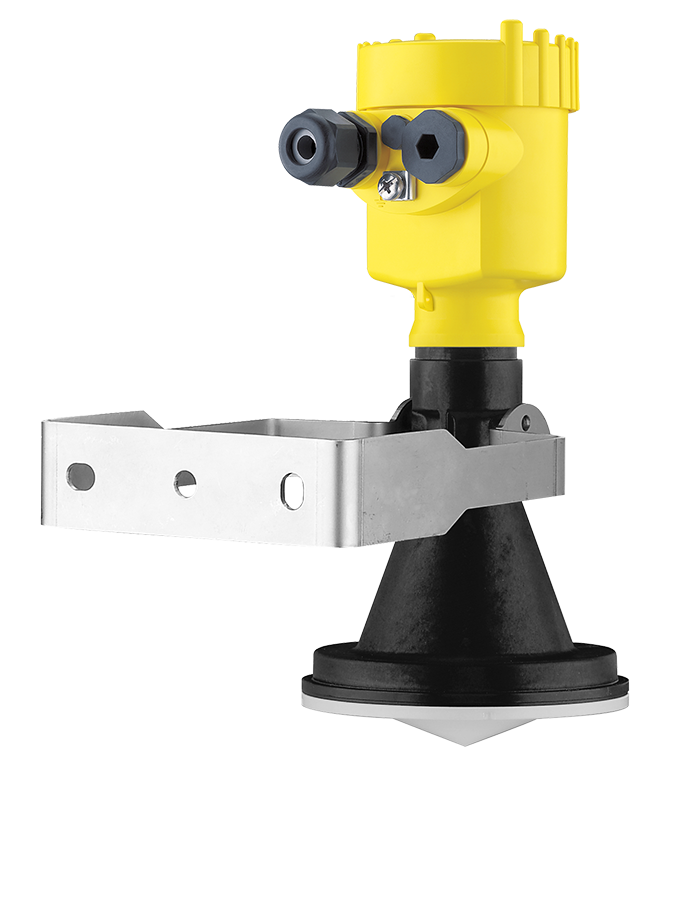

Simple, versatile mounting options for the plastic antenna using flange or mounting bracket offer an economical solution.

The VEGAPULS 61 is a radar sensor for continuous level measurement of liquids under simple process conditions. The VEGAPULS 61 is an economical solution through its simple and versatile mounting possibilities. The encapsulated antenna system ensures a maintenance-free operation.

Your benefit

• Exact measuring results independent of process conditions
• High plant availability, because wear and maintenance-free
• Maintenance-free operation through non-contact measuring principle

Technical specifications

Measuring range - Distance

35 m

Process temperature

-40 ... 80 °C

Process pressure

-1 ... 3 bar

Accuracy

± 2 mm

Version

with plastic horn antenna ø 80 mm

Encapsulated horn antenna

Materials, wetted parts

PVDF

316L

PP

Threaded connection

G1½, 1½ NPT

Flange connection

≥ DN80, ≥ 3"

Hygenic fittings

Clamp ≥ 2", DN50 - DIN32676, ISO2852

Slotted nut ≥ 2", DN50 - DIN 11851

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART - two-wire

Modbus

4 … 20 mA/HART - four-wire

Ambient temperature

-40 ... 80 °C
