Differential pressure gauge with electrical contact type_P650 series
P650 series
Service intended
The P650 series are designed to measure a differential pressure from 25 kPa to 2.0 MPa at static pressure up to 10 MPa, and have electrical contact. A set of two stainless steel bellows mounted on a force balance allows direct reading of the actual differential pressure. These models are designed to control and alarm for a differential pressure.
| Nominal diameter | 160 mm |
| Accuracy | ±1.0 % of full scale ±1.6 % of full scale |
| Scale range (MPa, kPa, bar, mbar) | 0 ~ 25 kPa to 0 ~ 0.25 MPa (P651 model) 0 ~ 0.4 MPa to 0 ~ 2.0 MPa (P652 model) |
| Static pressure | Max. 10 MPa |
| Working temperature | Ambient : -20 ~ 65 °C Fluid : Max. 100 °C |
| Degree of protection | EN60529/IEC529/IP65 |
| Temperature effect | Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.5 % per 10 ℃ of full scale |
Standard features
| Pressure connection | Stainless steel (316SS), Monel and Hastelloy-C |
| Element | Bellows Stainless steel (316L SS), Monel and Hastelloy-C |
| Case | Stainless steel (304SS) |
| Bezel ring | Stainless steel (304SS) Bayonet type |
| Window | Polycarbonate |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Conduit connection | M20 x 1.5 |
| Process connection | ¼" NPT(F) ½" NPT(F) at 3-way and 5-way manifold valve |
| Standard accessories | Mounting bracket for 2" pipe mounting with silver gray finished steel |
| Certificates | Pressure equipment directive (2014/68/EU) Annex III Module H |
| Option | ■ Remote seal ■ Mounting bracket with 316SS for 2" pipe mounting ■ 3-way manifold valve (316SS, Monel) ■ 5-way manifold valve (316SS, Monel) |

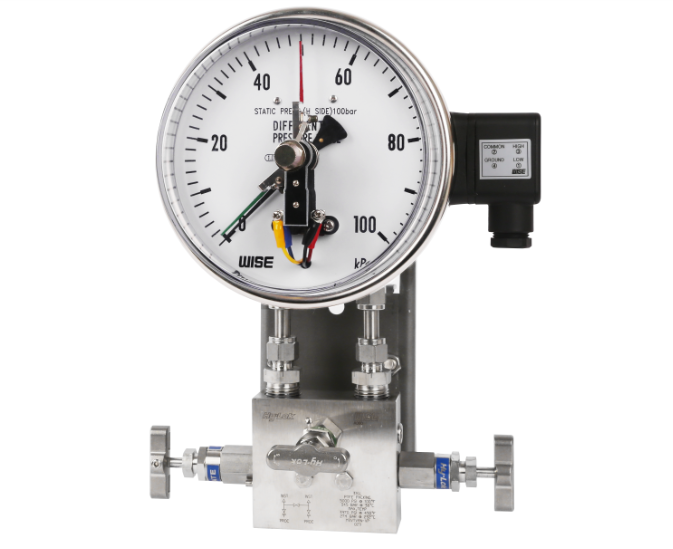

Đồng hồ đo áp suất P650 Wise - Đại lý Wisecontrol Việt Nam
