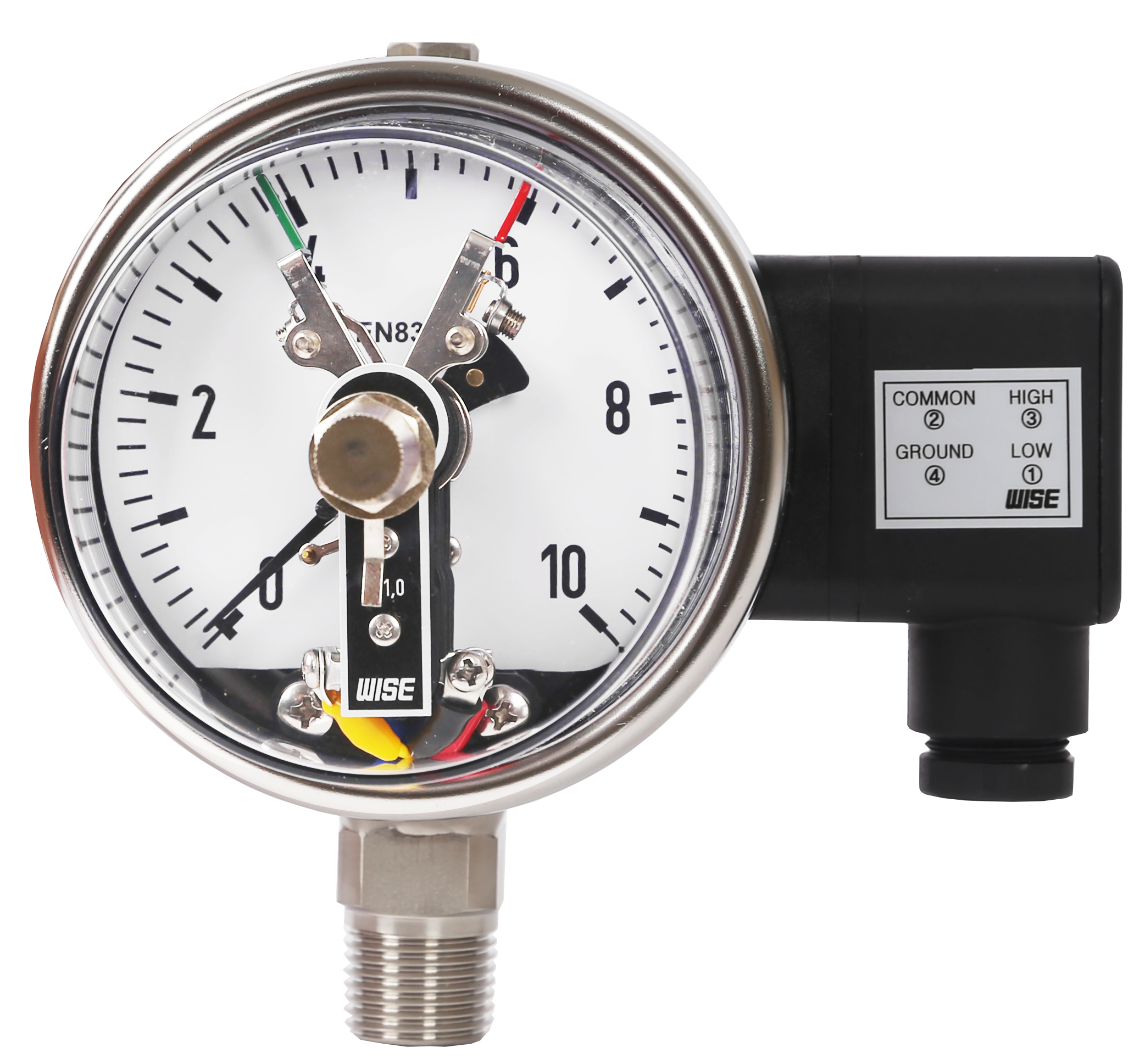

Euro gauge Electrical contact type pressure gauge (Modular system)_P510 series
P510 series
Service intended
P510 series are designed for a local reading of measured pressure and equipped with the inductive contact block which allows all the combinations of contacts to be used. The contact block is mounted on the dial. The window is fitted with a knob for external adjustment of the setpoints.
| Nominal diameter | 100 and 160 mm |
| Accuracy | ±1.0 % of full scale |
| Scale range (MPa, kPa, bar) | -0.1 ~ 0 to 0 ~ 200 MPa |
| Working pressure | Steady : 100 % of full scale Over range protection : 130 % of full scale |
| Working temperature | Ambient : -40 ~ 65 °C Fluid : Max. 100 °C |
| Degree of protection | EN60529/IEC529/IP67 |
| Temperature effect | Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale |
Standard features
| Pressure connection | Stainless steel (316SS) |
| Element | Stainless steel (316SS) <10 MPa : C type bourdon tube ≥10 MPa : Helical type bourdon tube |
| Case | Stainless steel (304SS) |
| Bezel ring | Stainless steel (304SS) Bayonet type |
| Window | Polycarbonate |
| Movement | Stainless steel |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Conduit connection | M20 x 1.5 |
| Process connection | ⅜", ½" PT, NPT and PF |
| Certificates | Pressure equipment directive (2014/68/EU) Annex III Module H |
| Option | Damping movement |
