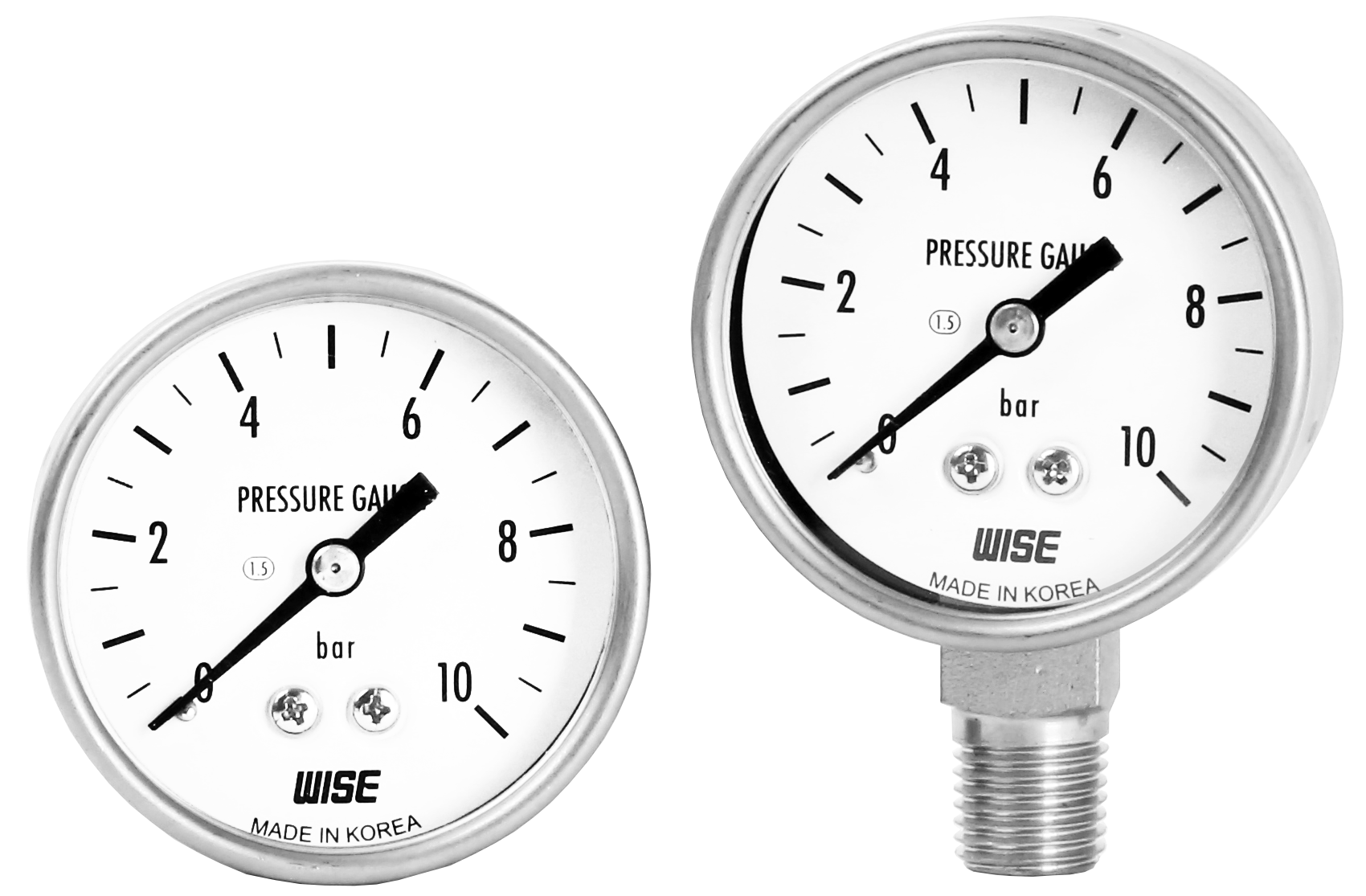

Industrial service pressure gauge (40, 50 mm)_P221, P253 series
P221, P253 series
Service intended
P221 and P253 series are suitable to be used in a corrosive environment, chemical, petro-chemical, refining facilities, power generation and marine and foods industry. Its stainless steel case and cover have a good appearance and an excellent protection against corrosion and chemical attack.
| Nominal diameter | 40 and 50 mm |
| Accuracy | 40 mm : ±3.0 % of full scale 50 mm : ±1.5 % of full scale |
| Scale range (MPa, kPa, bar) | 0 ~ 0.2, 0.3, 0.4, 0.6, 1, 1.5, 3.5 MPa |
| Working pressure | Steady : 75 % of full scale Over range protection : 130 % of full scale |
| Working temperature | Ambient : Model P221 : -40 ~ 65 °C Model P253 : -20 ~ 60 °C Fluid : Model P221 : Max. 200 °C Model P253 : Max. 60 °C |
| Temperature effect | Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale |
Standard features
| Pressure connection | Model P221 : Stainless steel (316SS) Model P253 : Nickel plated brass |
| Element | C type bourdon tube Model P221 : Stainless steel (316SS) Model P253 : Brass |
| Case | Stainless steel (304SS) |
| Cover | 40 mm : Stainless steel (304SS) and polycarbonate 50 mm : Stainless steel (304SS) |
| Window | Polycarbonate (40 and 50 mm) |
| Movement | Model P221 : Stainless steel Model P253 : Brass |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Process connection | ⅛", ¼" PT, NPT and PF |
| Option | Window : Safety glass with 304 stainless steel cover |
