TĂNG MINH PHÁT Đại lý phân phối sản phẩm Officineorobiche tại Việt Nam

Trong hơn 60 năm, Officine Orobiche Srl đã cung cấp cho khách hàng của mình ở Ý và trên toàn thế giới đảm bảo độ tin cậy và chức năng bất cứ yêu cầu nào của hệ thống - ngay cả những tình huống phức tạp, hiệu suất cao và khó khăn nhất.
Các thiết bị cơ điện ấn tượng và rộng rãi của nó có vô số ứng dụng cho các ngành công nghiệp chế biến khác nhau và đặc biệt là hóa chất, hóa dầu, dầu khí, giấy, thực phẩm, dược phẩm, sản xuất điện, xử lý nước, dệt, khai thác, thủy tinh, khai thác, sắt và thép, và các ngành công nghiệp mạ kẽm.

Các dòng sản phẩm của hãng: Officineorobiche tại Việt Nam

1,  Level Switches
The magnetic-type level switches are available for external or internal mounting on tanks and are particularly suitable for all difficult working conditions (temperature and pressure). The ON/OFF-type outlet is normally used for alarm and shutdown functions. The level switches, depending upon their working requirements, are equipped with floats and displacers and possess flanged or threaded connections (UNI, DIN or ANSI).

• Pressure from 10 to 400 bar
• Temperature from -80°C to +540°C
• Specific weights from 0,3 Kg/dm3.

Furthermore level switches are available in simple float type and ultrasonic type.

10 SeriesOne-float magnetic opposition level switch for side mounting...

Catalog Sheet1020 Series

One-float magnetic opposition level switch, for side mounting…

Catalog Sheet20 Series

One-float level switch for side mounting...

Catalog Sheet30 SeriesOne-float level switch for top mounting...

Catalog Sheet40 Series (41A-41B-41C-41E)Buoyancy level switch for top mounting...

Catalog Sheet40 Series (41D)Buoyancy level switch for top mounting with two switching...

Catalog Sheet50 SeriesOne-float level switch for external side mounting...

Catalog Sheet60 SeriesOne-float level switch with non-inspectable body for external
side mounting...

Catalog Sheet70 SeriesOne-float level switch with inspectable body for external side
mounting...

Catalog Sheet80 SeriesBalanced float level switch with non-inspectable body...

Catalog Sheet6000 SeriesBuoyancy level switch for external side mounting with...

Catalog Sheet7000 SeriesBuoyancy level switch for external side mounting...

Catalog Sheet4060 SeriesBuoyancy level switch for external mounting on tank...

Catalog Sheet4070 SeriesBuoyancy level switch for external mounting on tank with a single...

Catalog SheetLSR Series

Catalog SheetFLS seriesEco.3 level switch is reliable solution to check and/or settle the level of the liquid in the drain water’s heaving stations,
Catalog SheetULS SeriesThe level switch is designed for checking of the liquids...

Catalog Sheet

2, Visual Flow Indicators
The visual flow indicators show whether or not fluid is flowing in a pipeline. We manufacture flow indicators for both horizontal and vertical mounting and which are suitable for the most diverse industrial applications.

IVF Series (mod SPO)Visual flow indicator with moveable paddle for horizontal
mounting...

Catalog SheetIVF Series (Mod. SPA-SPD)Visual flow indicator with moveable paddle for vertical mounting. For pressure up max. 10 Bar
Catalog SheetIVF Series (Mod. SLE-SCE-SBE)Free passage visual flow indicator for horizontal and vertical mounting. For pressure up max. 25 Bar
Catalog Sheet

 3, Flow Switches
Flow switches are used to indicate visually, either with or without an alarm, whether or not a fluid or gas is flowing in a pipeline. We manufacture flow switches in various models such as valve body, bladed and flow indication, suitable for the most diverse industrial applications.

CV-CVM SeriesBody valve flow switch for water, for max. or min. flow alarms...

Catalog SheetTGO SeriesPaddle type flow switch for liquids, with flow indicator, for max. or min...

Catalog SheetPLD SeriesPaddle type flow switch for water, with max. or min. flow alarm, with a single switching unit...

Catalog SheetPL SeriesPaddle type flow switch for water, with max. or min. flow alarm, with a single switching...

Catalog SheetPLJ SeriesPaddle type flow switch for water, with max. or min. flow alarm, with a single switching...
Catalog Sheet

4,  Flowmeters

We manufacture a full range of variable area and calibrated flange flowmeters allowing for a vast application for small and high liquid and gas flows. The variable area flowmeters have a perfectly calibrated borosilicate glass gauge with a stainless steel or plastic body, or are totally manufactured in stainless steel or in plexiglass. They are available in threaded or flanged version. Accessories: minimum and maximum flow alarms and 4 - 20 mA standardised signal at output, proportional to the flow.

FD SeriesVariable area flowmeters with glass measuring tube for small and large flows...

Catalog Sheet500 SeriesVariable area flowmeters with glass measuring tube for small and large flows...

Catalog SheetFTV SeriesVariable area flowmeter with borosilicate glass tube, for high and low ranges...

Catalog SheetRV SeriesCalibrated flange-type orifice plate flowmeters with offtake flowmeter for large and very large flows...

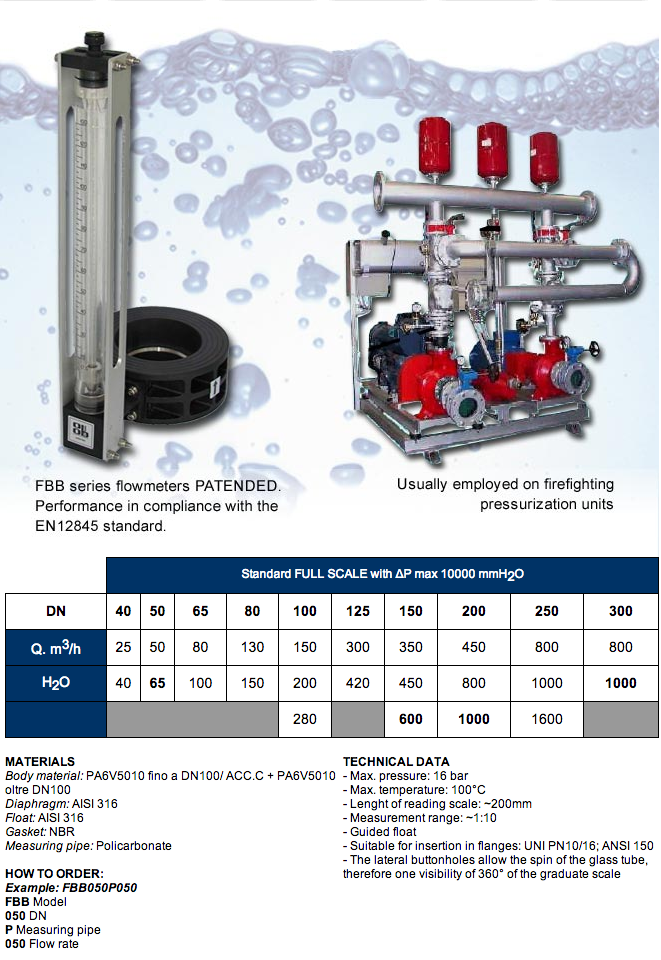

Catalog SheetFBB Series Usually employed in firefighting pressurizations units
Catalog SheetTMN 250 SeriesTMN250 Series - Metallic flowmeters for liquids...
Catalog SheetTMG 250 SeriesTMN250 Series - Metallic flowmeters for liquids...
Catalog SheetTMS 100 SeriesTMS100 Series - Metallic flowmeters for low flow for gas and liquid...
Catalog SheetTMO 250 SeriesTMO250 Series - Metallic flowmeters for ...
Catalog SheetFlow TransmittersThe transmitters is composed by an angular converter and by an electronic circuit that furnishes a signal 4/20 mA
Catalog Sheet212 SeriesCompact variable area flowmeters for gas and liquid...
Catalog Sheet212R SeriesCompact purge flowmeters variable area type for gas...
Catalog Sheet231 SeriesVariable area flowmeters for gas and liquid...
Catalog Sheet231R SeriesPurge flowmeters variable are type for gas...
Catalog Sheet110 - 130 - 132 - 140 SeriesVariable area flowmeters with plexiglas body for small and medium size flows...

Catalog Sheet

5, Level Indicators
The level indicators are designed to permit continuous gauging of the level of a liquid in a tank. These are usually mounted laterally both on open or pressure tanks or on the top of underground tanks. Officine Orobiche S.p.A. produces three types of instruments:
- A magnetic coupling indicator with “bi-colour flags”. This indicator can be equipped with level alarms and/or with an electronic transmitter with a 4/20 mA standardised signal at output. This can be supplied separately from the level indicator.
- Glass level gauges, available in tube, transparent and reflex versions
- Dial type for small and high tanks.

2000 Seriesvisual level indicators for any type of liquids...
Catalog SheetTL SeriesThe probe permits the trasmission of the level to a remote indicator, through a 4-20 mA...

Catalog SheetT25 SeriesMagnetic alarms give a signal of min. and/or max. level, on the level indicator...

Catalog SheetTLT Series Level Transmitter
The “TLT” series level transmitter is used to measures the level of ...

Catalog SheetR-Series Reflex Level GaugesReflex indicators display the fluid level through a transparent surface being part...
Catalog SheetT-Series Transparent Level GaugesThis type of indicators display the level of the fluid through a transparent surface, being part of a column...
Catalog SheetBicolour Level gaugeThe bicolour level gauges allow a sure and clear reading of the level...

Catalog SheetVBB Series Tubular Level GaugesThis type of level indicators display the level of the fluid through a borosilicate glass tube...
Catalog SheetValvesValves for glass level gauges
Catalog SheetRJB & TJB Series level indicator

Catalog SheetTLQ-W Series Float & Board Liquid Level indicatorThe Officine Orobiche float & board level indicators provide a simple, reliable and low-cost measurement system for any type of storage vessels...
Catalog SheetTLQ Series Dial Level IndicatorsThe mechanical dial gauge is designed for level measurement of liquids in small, medium and large reservoirs...
Catalog SheetChamber CHA seriesChamber for external mounting on process of transmitters, type Guided Wave Radar (TRD) or Torque Tube...

6, Switch Enclosures

Water Proof Enclosures WPThe WP waterproof enclosure can be turned through 360˚ and is used for all level switches...
Catalog SheetExplosion Proof Enclosures EPThe EP explosion-proof enclosure is used for all level switches...
Catalog SheetATEX-Ex-ia_noteControl units for level or flow switches in intrinsically safe execution CESI 07ATEX012X certificate...
Catalog SheetATEX-Ex-d_noteControl unit for level or flow switches in explosion proof execution. CESI 02ATEX126 certificate...
Catalog Sheet

7, In process industry, both in pharmaceutical and food production, the correct method of measuring temperature is essential to maintain the proper functioning and safety of the installations and to guarantee the quality of production.
Officine Orobiche has been active in the field of instrumentation for more than 60 years.
Through this sixtieth the firm, helped by the collaboration and the experience of a leading corporation in the sector, has developed its own products for the measure of temperature.

Temperature measures

Catalog Sheet
