SOUNDING



---

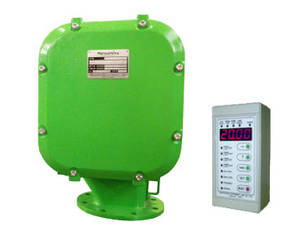

SOUNDING M’s

Standard Type Level Meter
Measuring range 0 to 40m
Accuracy 1%
Output signal 4～20mA DC

Sounding M’s, which is the ultimate series of MATSUSHIMA’s sounding level meter, can save much cost for installation as it needs only 4-core cable for wiring, doesn’t need any tiresome adjustment as it can easily be set at control unit and can be applied to various applications such as high temperature, high pressure, low temperature, explosion proof, etc... Sounding M’s as a general-purpose sounding level meter provides stable measurement with reasonable price.

---

Catalog PDF

---

---

---

SOUNDING V

Compact Type Level Meter
Measuring range 0 to 20m
Accuracy 1 to 2%
Output signal 4～20mA DC

Sounding V is a compact type level meter which is produced to pursue low price and smaller size, however, completely includes the control circuit in the main body and is possible to make measurement by manual switch, auto-measurement by built-in timer and signal output according to the level setting.By the Sounding V, continuous level measurement is possible with the cost equivalent to a few units of point level equipment, and it is suited to storage management for various kinds of powder such as grain, feed, etc...

---

Catalog PDF

---

---

SOUNDING DEVICE

Heavy Duty Type Level Meter
Measuring range 0 to 40m(Option: up to 150m)
Accuracy 1 to 1.5 %

Output signal
Synchro type,
Potentiometer,
Encoder transmitter,
4～20mA DC,etc

Sounding Device is a heavy duty type level meter which has been manufactured for 50 years and over. Since a firm reduction gear employed,level measurement under the severe environment having high temperature and high density dust can be done. Suited to be used for storage level measurement over the wide range from powder of low density up to lump materials. Backed up with large actual results of delivery to the industries such as iron ＆ steel, nonferrous metal, cement, power plant, etc...

---

---

SOUNDING DEVICE FOR BLAST FURNACE

Level Measurement of Raw Materials in Blast Furnace
Measuring range 0 to 30m
Accuracy 1 %
Type MDSB-1411

Sounding Device for blast furnace is a large-type level meter in which to measure the level of raw materials in the blast furnace in steel plant.
lt is so constructed that the sensing weight is in contact with the raw materials and traces the variation of level for detecting precisely the raw materials level which changes in accordance with melting speed.

---

View of Operation Motor

---

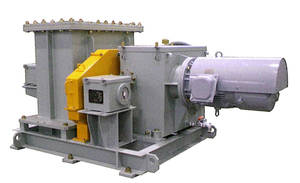

View of Sounding Device

---

SPARE PARTS

---

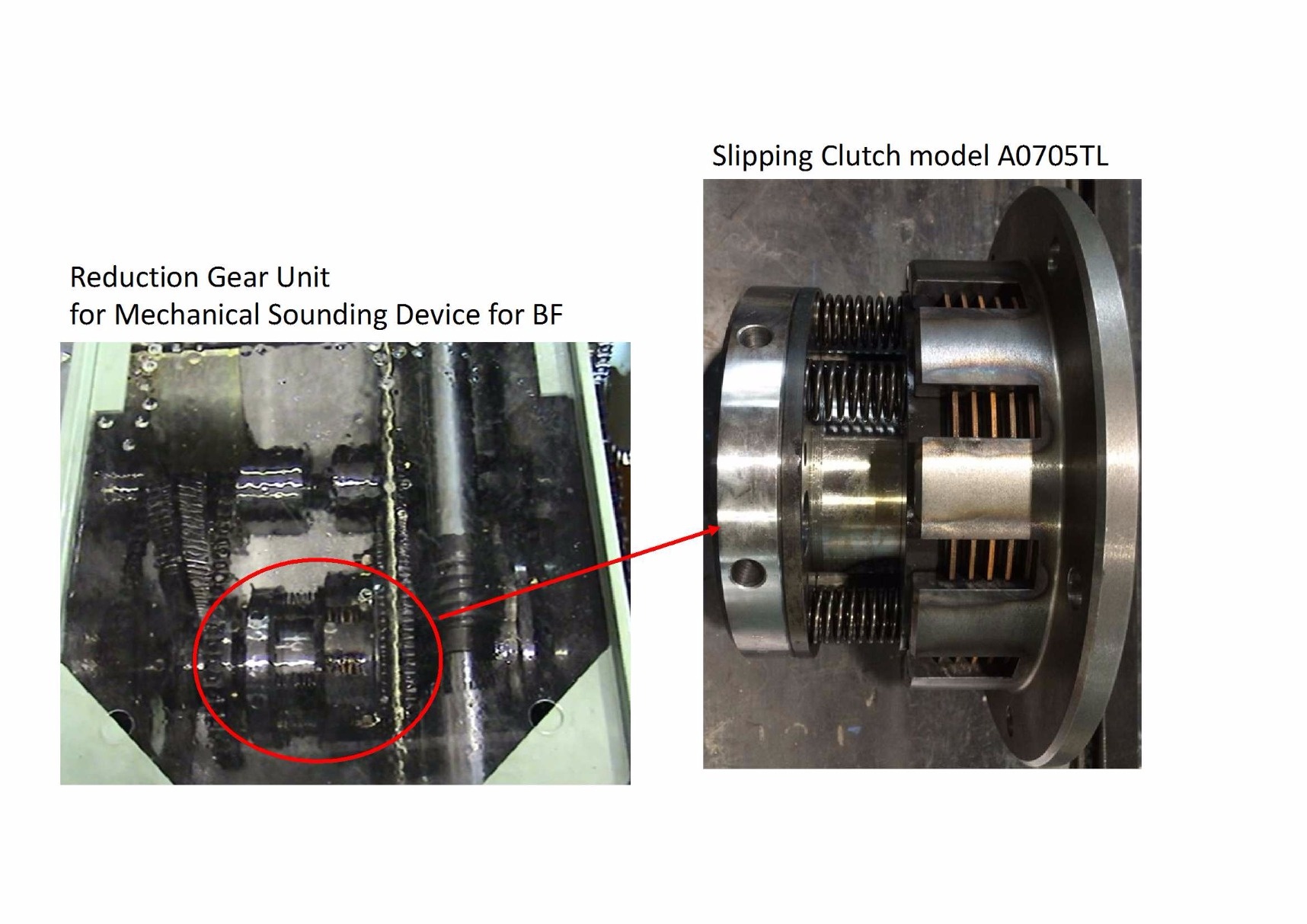

SLIPPING CLUTCH A0705-TL

Spare parts list
