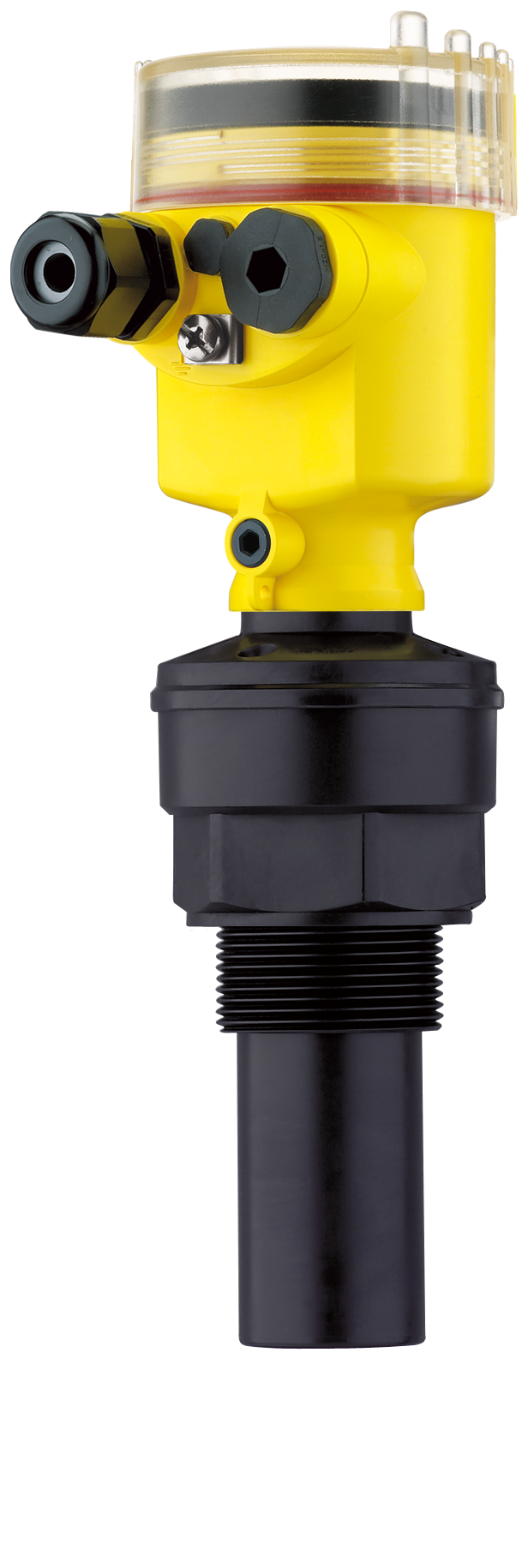

VEGASON S61

Ultrasonic sensor for continuous level measurement for measuring ranges up to 5 m

Measures liquids up to 5 m and bulk solids up to 2 m away

Application area

Output signal 4 ... 20 mA, Ex approval and PLICSCOM optional.

The VEGASON S 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium.

Technical specifications

Measuring range - Distance

5 m

Process temperature

-40 ... 80 °C

Process pressure

-0.2 ... 2 bar

Accuracy

± 4 mm

Threaded connection

G1½, 1½ NPT
