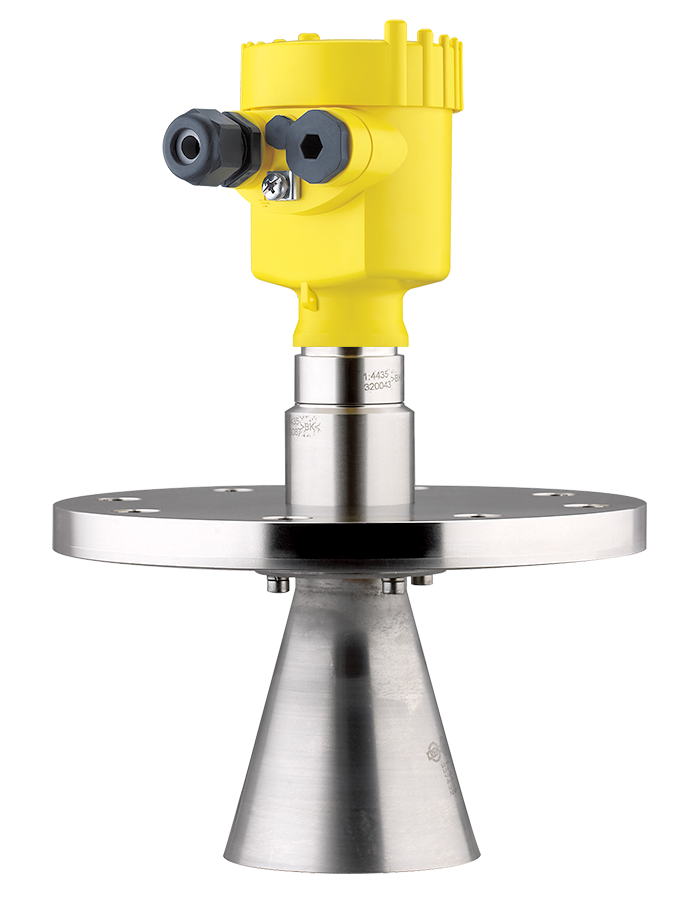

VEGAPULS 66

Radar sensor for continuous level measurement of liquids

In extreme temperatures and pressures



VEGAPULS 66

Application area

The extended selection of process fittings and materials allows use in extreme temperature and pressure ranges.

The VEGAPULS 66 is a sensor for continuous level measurement of liquids under arduous process conditions. It is suitable for applications in storage tanks, process vessels or standpipes. The VEGAPULS 66 can be used universally thanks to different antenna versions.

Your benefit

• High plant availability, because wear and maintenance-free
• Maintenance-free operation through non-contact measuring principle
• Reliable measurement independent of process conditions

Technical specifications

Measuring range - Distance

35 m

Process temperature

-60 ... 400 °C

Process pressure

-1 ... 160 bar

Accuracy

± 8 mm

Version

for separate horn antenna

with horn antenna ø 48 mm

with horn antenna ø 75 mm

with horn antenna ø 95 mm

with ø 52 mm standpipe

for separate standpipe

with horn antenna ø 140 mm enamelled

with horn antenna ø 145 mm

with horn antenna ø 160 mm enamelled

with horn antenna ø 195 mm

with horn antenna ø 240 mm

Materials, wetted parts

316L

Alloy C22 (2.4602)

Enamel

Alloy C276 (2.4819)

316

1.4435

Flange connection

≥ DN50, ≥ 2"

Seal material

EPDM

FKM

FFKM

graphit and ceramic

PTFE

Silicone FEP coated

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART - two-wire

Modbus

4 … 20 mA/HART - four-wire

Ambient temperature

-40 ... 80 °C
