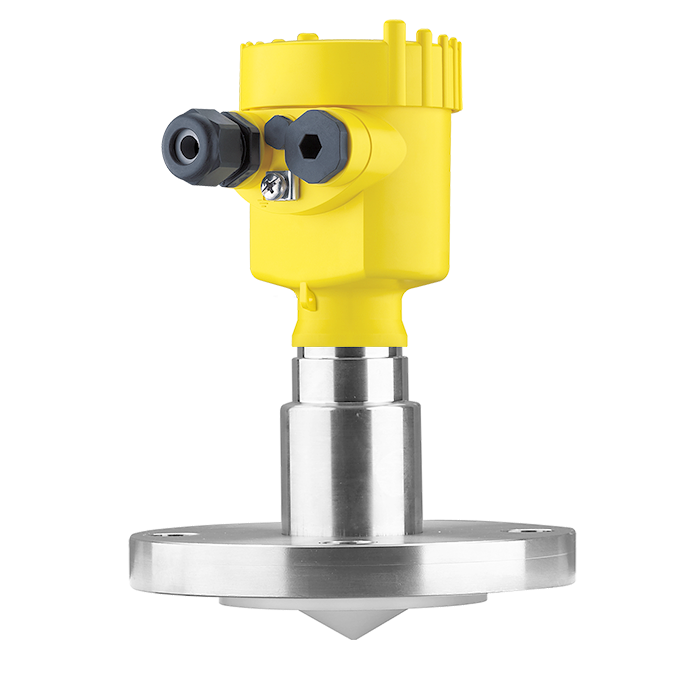

VEGAPULS 63

Radar sensor for continuous level measurement of liquids

For aggressive liquids or under hygienic requirements



Application area

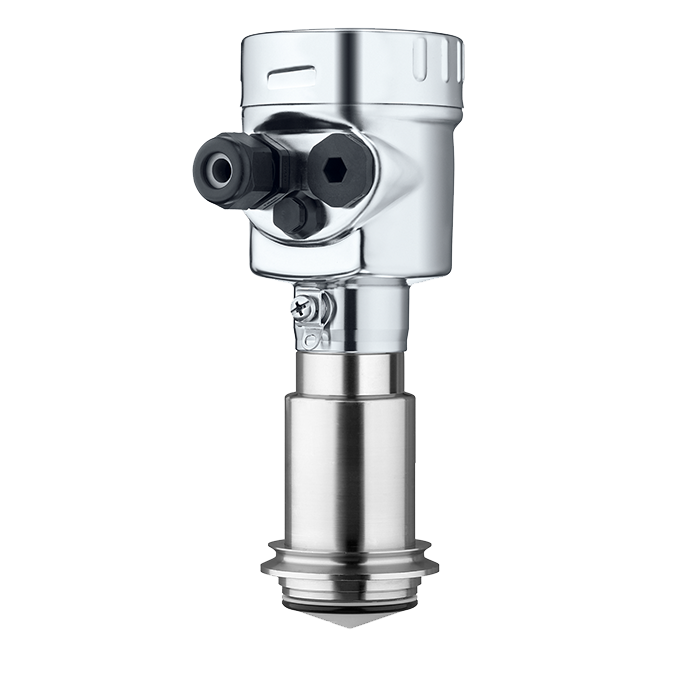

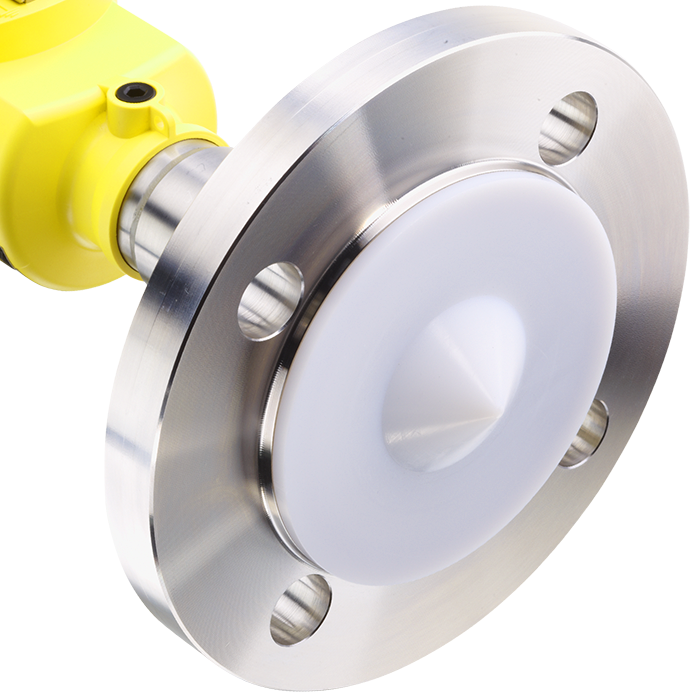

The front-flush mounting of the encapsulated antenna system ensures optimum cleaning even with strict hygienic requirements.

The VEGAPULS 63 is a radar sensor for continuous level measurement of aggressive liquids or with hygienic requirements. It is suitable for applications in storage tanks, process vessels, dosing vessels and reactors. The encapsulated antenna system of VEGAPULS 63 protects the VEGAPULS 63 against pollution and ensures a maintenance-free permanent operation. The front-flush mounting ensures an optimum cleanability even with high hygienic requirements.

Your benefit

• Exact measuring results independent of process conditions
• High plant availability, because wear and maintenance-free
• Maintenance-free operation through non-contact measuring principle

Technical specifications

Measuring range - Distance

35 m

Process temperature

-196 ... 200 °C

Process pressure

-1 ... 16 bar

Accuracy

± 2 mm

Version

hygienically encapsulated horn antenna

Materials, wetted parts

PFA

PTFE

316L

TFM-PCTFE

TFM-PTFE

Flange connection

≥ DN50, ≥ 2"

Hygenic fittings

Clamp ≥ 2", DN50 - DIN32676, ISO2852

Slotted nut ≥ 2", DN50 - DIN 11851

Varivent ≥ DN25

hygienic fitting with tension flange DN32

hygienic fitting F40 with compression nut

Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A

Hygienice flange connection ≥ DN50 DIN11864-2

Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A

DRD connection ø 65 mm

SMS 1145 DN51

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART - two-wire

Modbus

4 … 20 mA/HART - four-wire

Ambient temperature

-40 ... 80 °C
