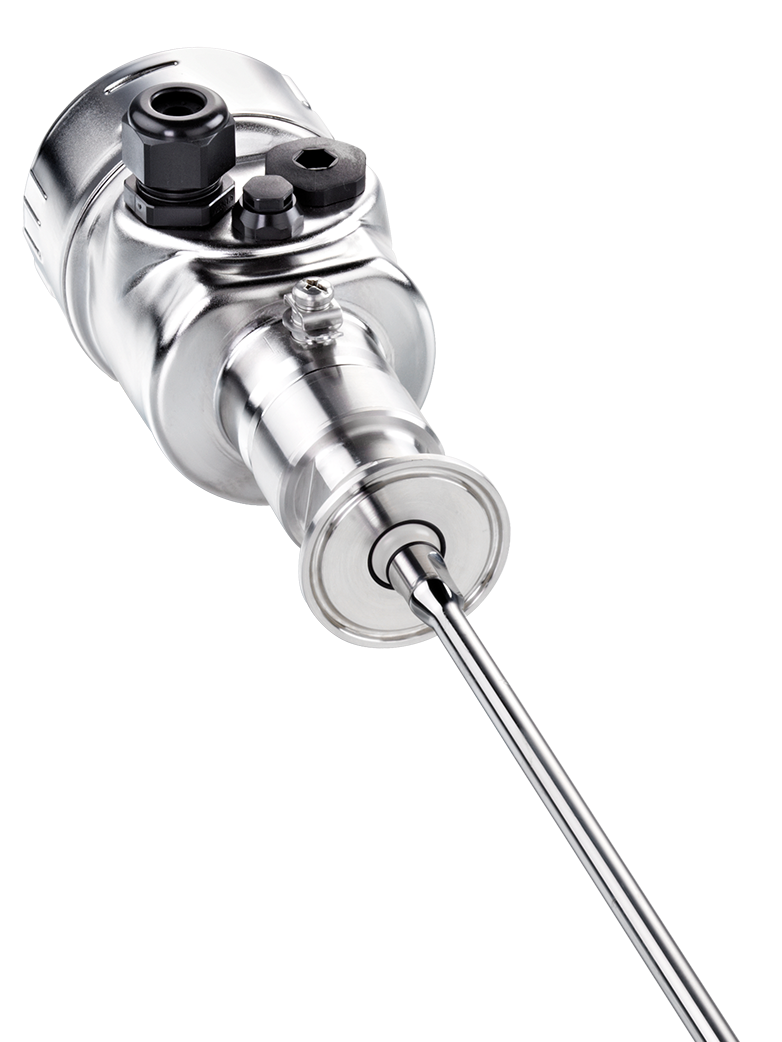

VEGAFLEX 83

TDR sensor for continuous level and interface measurement of liquids

For aggressive media or extremely high hygienic requirements



Application area

PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings.

The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

Your benefit

• The gap-free hygienic design ensures simple and reliable cleanability
• The maintenance-free operation increases the plant efficiency
• The guided adjustment enables a simple, time-saving and reliable setup

Technical specifications

Measuring range - Distance

32 m

Process temperature

-40 ... 150 °C

Process pressure

-1 ... 16 bar

Accuracy

± 2 mm

Version

Rod ø 10 mm, PFA-coated

Exchangeable rod ø 8 mm, polished

Exchangeable rod ø 8 mm, electropolished

Exchangeable rod ø 8 mm, electropolished, can be autoclaved

Cable ø 4 mm with gravity weight, PFA-coated

Materials, wetted parts

PFA

316L

TFM-PTFE

Flange connection

≥ DN25, ≥ 1"

Hygenic fittings

Clamp ≥ 2", DN50 - DIN32676, ISO2852

Clamp ≥ 3", DN65 - DIN32676, ISO2852

Slotted nut ≥ 1½", ≥ DN40 - DIN 11851

Slotted nut ≥ 2", DN50 - DIN 11851

Varivent ≥ DN25

Hygienice flange connection ≥ DN50 DIN11864-2

Swagelok VCR screwing

Hygienic socket. ≥ DN33 – DIN 11864-3

Safety ingold

Seal material

EPDM

FKM

FEPM

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART - two-wire

Modbus

4 … 20 mA/HART - four-wire

Ambient temperature

-40 ... 80 °C
