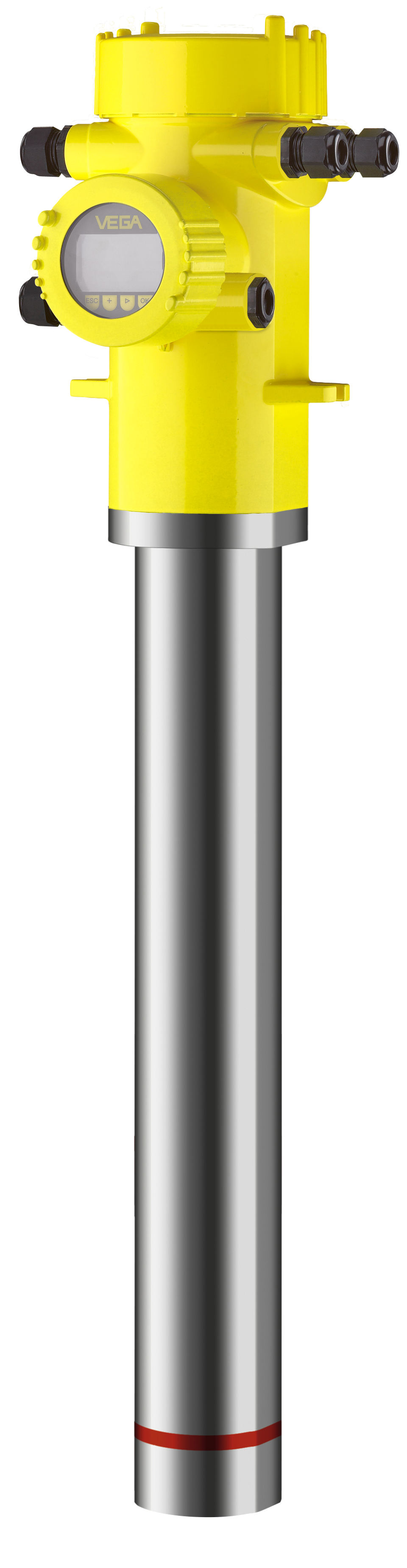

SOLITRAC 31

Radiometric sensor for continuous level measurement

Rod detector



SOLITRAC 31

Application area

SOLITRAC 31 is ideal for use on cylindrical vessels, reactors, autoclaves, separators and mixing vessels. SOLITRAC offers extraordinarily high accuracy over the entire measuring range.

The SOLITRAC 31 is a radiation-based sensor with PVT rod detector for continuous measurement of liquids and bulk solids. It is suitable for level measurement under extreme process conditions, with critical product features or in aggressive products. The SOLITRAC 31 is ideal for use in cylindrical vessels, reactors, autoclaves, separators and mixing vessels.

Technical specifications

Measuring range - Distance

3 m

Process temperature

-

Process pressure

-

Accuracy

± 0.5 %

Materials, wetted parts

No wetted material

Seal material

no media contact

Housing material

Aluminium

Stainless steel (precision casting)

Protection rating

IP66/IP67

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART - four-wire

Ambient temperature

-40 ... 60 °C

Your benefit

• Best measurement performance through PVT detector with maximum sensitivity
• Simple mounting through supplied accessory
• High plant availability through non-contact measurement
