Tăng Minh Phát - Đại lý Pauly Việt Nam - Đại lý phân phối độc quyền Fotoelektrik Pauly tại Việt Nam.
Cảm biến đo khoảng cách bằng tia laser PLDM1030 - Đại lý Pauly Việt Nam.

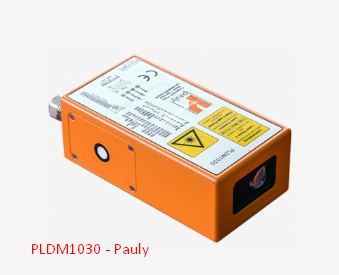

PLDM1030
- Description
- Laser Distance Sensor, allround using e. g. for object detection, distance measurement and positioning requirements of moving vehicles
- Typical measuring accuracy
- +- 3.0 mm at 2 sigma; +- 1.0 mm at 2 sigma (Type PLDM1010)
- Typical repeatability
- +- 0.5 mm at 2 sigma; +- 0.4 mm at 2 sigma (Type PLDM1010)
- Working Range
- 0.05 up to approx. 65 m on natural surfaces; 0.5 m up to 500 m on orange, efelctive target plate
- Housing
- Al-Cast
- Dimensions
- appr. 160 x 54 x 80 [mm] (L x H x W); without cable glant and connector Sub D
- Protection Mode
- IP65
- Connection Mode
- Terminal or Plug-Connection 15 pins Sub D
- Transmitting Light
- Laser-Diode 650 nm, visible
- Radiant power
- max. 0.95 W; Class 2 (DIN EN 60825-1:2008-05)
- Beam diameter
- 4 mm at 5 m; 8 mm at 10 m; 15 mm at 30 m
- Measurement time
- single mode: typical 0.3 up to 4 s; tracking mode: typical 0.004 up to 4 s; the real measurment time depends on the choosen processing mode
- Power Supply
- 9 VDC up to 30 VDC / 600 mA
- Power indicator
- green LED
- Switch indicator
- red and yellow LEDs
- Control Output
- 1 x serial async. interface RS232; 1 x serial async. interface RS422; 1 x SSI; 1 x programmable analog output 0/4 up to 20 mA; 2 x programmable digital ouput; 1 x programmable digital input; 1 x digital output for error status; Optional: Fieldbus (Profibus)
- Ambient Temperature
- -10 degree up to +50 degree Celsius
- Special/Optional Features
- special mounting auxilliaries are available e. g.: model type JFBEC , ADPLDM1030SS1 .or. for furnace application furnace window model type O2004*09 with an appropriated, angled window plate fixed into the exchangeable-furnace-window
