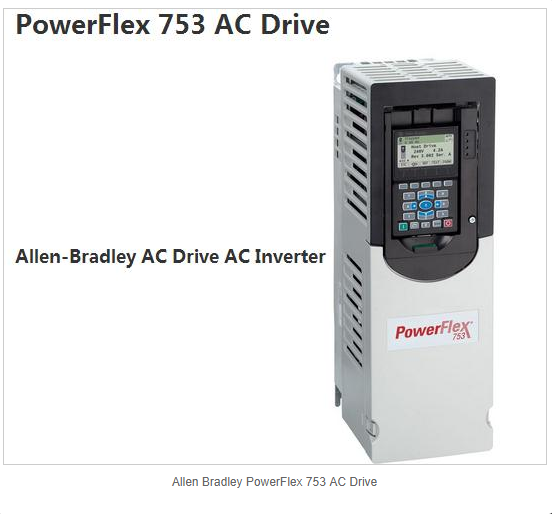

Bộ khuếch đại PowerFlex 753 của Allen Bradley

Mô tả:

Brand: Allen Bradley

Chia sẻ:

Số lượng

Bộ biến dòng AB PowerFlex 753 / AC từ AoteWell inc

0,75 ... 250 kW, 400V 3 pha (480V 3 pha cũng có sẵn)
V / Hz, điều khiển vector không cảm biến và điều khiển vector luồng
Môđun truyền thông cho một loạt các mạng lưới tự động hóa công nghiệp
LCD HIM LCD đa ngôn ngữ tùy chọn với sự trợ giúp khởi động
Nhà kệ sách với bộ lọc EMC và phiến phanh động
IP00 / IP20, Nắp Bích, IP54
Sơn Conformal
Tùy chọn Torque-off an toàn phù hợp với EN954-1 Cat. 3
Kiểm tra tốc độ an toàn Ple / SIL3 Cat.4
DeviceLogix, Chẩn đoán Preventative
Có thể lập trình được thông qua DriveExplorer hoặc DriveExecutive (1203-USB được yêu cầu)

Typical Motor Rating		Input Voltage	Drive Output [A]			Frame Size	Dimensions	Cat. No.
[kW]	[A]	Input Voltage	Cont.	60 s	3 s	Frame Size	H x W x D	Cat. No.
0.75	1.88	400…480V 50/60Hz, 3-phase, EMC Filter, Brake Chopper	2.1	3.1	3.7	2	424x135x212	20F11NC2P1JA0NNNNN
1.5	3.5		3.5	5.2	6.3	2	424x135x212	20F11NC3P5JA0NNNNN
2.2	5.0		5.0	7.5	9.0	2	424x135x212	20F11NC5P0JA0NNNNN
4.0	8.4		8.7	13	15.6	2	424x135x212	20F11NC8P7JA0NNNNN
5.5	11		11.5	17.2	20.7	2	424x135x212	20F11NC011JA0NNNNN
7.5	15		15.4	16.9	23.1	2	424x135x212	20F11NC015JA0NNNNN
11	21		22	24.2	33	2	424x135x212	20F11NC022JA0NNNNN
15	29		30	33	45	3	454x190x212	20F11NC030JA0NNNNN
18.5	34		37	40.7	55.5	3	454x190x212	20F11NC037JA0NNNNN
22	40		43	47.3	64.5	3	454x190x212	20F11NC043JA0NNNNN
30	53		60	66	90	4	474x222x212	20F11NC060JA0NNNNN
37	65		72	79.2	108	4	474x222x212	20F11NC072JA0NNNNN
45	78		85	93.5	127	5	550x270x212	20F11NC085JA0NNNNN
55	98		104	114	156	5	550x270x212	20F11NC104JA0NNNNN
75	132		140	154	210	6	666x308x346	20F1ANC140JA0NNNNN
90	158		170	187	255	6	666x308x346	20F1ANC170JA0NNNNN
110	194		205	225	307	6	666x308x346	20F1ANC205JA0NNNNN
132	235		260	286	390	6	666x308x346	20F1ANC260JA0NNNNN
160	276		302	332	453	7	882x430x350	20F1ANC302JA0NNNNN
200	345		367	404	550	7	882x430x350	20F1ANC367JA0NNNNN
250	400		456	501	684	7	882x430x350	20F1ANC456JA0NNNNN
75	132	400…480V 50/60Hz, 3-Phase, EMC Filter, no Brake Chopper	140	154	210	6	666x308x346	20F1ANC140JN0NNNNN
90	158		170	187	255	6	666x308x346	20F1ANC170JN0NNNNN
110	194		205	225	307	6	666x308x346	20F1ANC205JN0NNNNN
132	235		260	286	390	6	666x308x346	20F1ANC260JN0NNNNN
160	276		302	332	453	7	882x430x350	20F1ANC302JN0NNNNN
200	345		367	404	550	7	882x430x350	20F1ANC367JN0NNNNN
250	400		456	501	684	7	882x430x350	20F1ANC456JN0NNNNN

See Publication 750-TD001… for complete product information.

PowerFlex 753 AC Drive

Typical Motor Rating		Input Voltage	Drive Output [A]			Frame Size	Dimensions	Cat. No.
[kW]	[A]	Input Voltage	Cont.	60 s	3 s	Frame Size	H x W x D	Cat. No.
0.75	1.88	IP54, 400…480V 50/60Hz, 3-phase, EMC Filter, Brake Chopper	2.1	3.1	3.7	2	543x215x222	20F11GC2P1JA0NNNNN
1.5	3.5		3.5	5.2	6.3	2	543x215x222	20F11GC3P5JA0NNNNN
2.2	5.0		5.0	7.5	9.0	2	543x215x222	20F11GC5P0JA0NNNNN
4.0	8.4		8.7	13	15.6	2	543x215x222	20F11GC8P7JA0NNNNN
5.5	11		11.5	17.2	20.7	2	543x215x222	20F11GC011JA0NNNNN
7.5	15		15.4	16.9	23.1	2	543x215x222	20F11GC015JA0NNNNN
11	21		22	24.2	33	2	543x215x222	20F11GC022JA0NNNNN
15	29		30	33	45	3	551x268x220	20F11GC030JA0NNNNN
18.5	34		37	40.7	55.5	3	551x268x220	20F11GC037JA0NNNNN
22	40		43	47.3	64.5	3	551x268x220	20F11GC043JA0NNNNN
30	53		60	66	90	4	571x300x220	20F11GC060JA0NNNNN
37	65		72	79.2	108	5	647x248x220	20F11GC072JA0NNNNN
45	78		85	93.5	127	5	647x248x220	20F11GC085JA0NNNNN
55	98		104	114	156	6	1289x609x465	20F1AGC104JA0NNNNN
75	132		140	154	210	6	1289x609x465	20F1AGC140JA0NNNNN
90	158		170	187	255	6	1289x609x465	20F1AGC170JA0NNNNN
110	194		205	225	307	6	1289x609x465	20F1AGC205JA0NNNNN
132	235		260	286	390	7	1614x609x465	20F1AGC260JA0NNNNN
160	276		302	332	453	7	1614x609x465	20F1AGC302JA0NNNNN
200	345		367	404	550	7	1614x609x465	20F1AGC367JA0NNNNN
250	400		456	501	684	7	1614x609x465	20F1AGC456JA0NNNNN
55	98	IP54, 400…480V 50/60Hz, 3-Phase, EMC Filter, no Brake Chopper	104	114	156	6	1289x609x465	20F1AGC104JN0NNNNN
75	132		140	154	210	6	1289x609x465	20F1AGC140JN0NNNNN
90	158		170	187	255	6	1289x609x465	20F1AGC170JN0NNNNN
110	194		205	225	307	6	1289x609x465	20F1AGC205JN0NNNNN
132	235		260	286	390	7	1614x609x465	20F1AGC260JN0NNNNN
160	276		302	332	453	7	1614x609x465	20F1AGC302JN0NNNNN
200	345		367	404	550	7	1614x609x465	20F1AGC367JN0NNNNN
250	400		456	501	684	7	1614x609x465	20F1AGC456JN0NNNNN

See Publication 750-TD001… for complete product information.

PowerFlex 753 AC Drive Options

	Cat. No.
User Interface Modules
Full Numeric LCD, Enhanced	20-HIM-A6
DPI-Port Cable, 1 m	20-HIM-H10
Full Numeric LCD, Enhanced, IP66, includes 3 m cable	20-HIM-C6S
DPI-Port Cable Extension, 0.30 m	1202-H03
DPI-Port Cable Extension, 1 m	1202-H10
DPI-Port Cable Extension, 3 m	1202-H30
DPI-Port Cable Extension, 9 m	1202-H90
Internal Communication Option
PowerFlex 750 Series DeviceNet Module	20-750-DNET
PowerFlex 750 Series ControlNet Module	20-750-CNETC
PowerFlex 750 Series ProfiBus DPV1 Module	20-750-PBUS
PowerFlex 750 Series BACnet/IP Module	20-750-BNETIP
PowerFlex 750 Series 20-COMM Carrier Card	20-750-20COMM
I/O Option
PF750 Series, 2262 I/O (24V) with 2 Relay Outputs	20-750-2262C-2R
PF750 Series, 2262 I/O (115V) with 2 Relay Outputs	20-750-2262D-2R
PF750 Series, 2263 I/O (24V) with 1 Relay and 2 Transistor Outputs	20-750-2263C-1R2T
PF750 Series, 24V Aux. Power Supply	20-750-APS
Encoder Option
PF750 Series, Incremental Encoder	20-750-ENC-1
PF750 Series, Dual Incremental Encoder	20-750-DENC-1
Safety Option
PF750 Series, Safe Torque Off	20-750-S
PF750 Series, Safe Speed Monitor	20-750-S1
Internal Brake Resistor
PF750 Series, Internal Brake Resistor, 480V, Frame 2	20-750-DB1-D2
Protection Option
PF750 Series, EMC Plate with Core, Frame 2	20-750-EMC1-F2
PF750 Series, EMC Plate with Core, Frame 3	20-750-EMC1-F3
PF750 Series, EMC Plate with Cores, Frame 4	20-750-EMC1-F4
PF750 Series, EMC Plate with Cores, Frame 5	20-750-EMC1-F5
PF750 Series, IP21/NEMA 1 Kit, Frame 2	20-750-NEMA1-F2
PF750 Series, IP21/NEMA 1 Kit, Frame 3	20-750-NEMA1-F3
PF750 Series, IP21/NEMA 1 Kit, Frame 4	20-750-NEMA1-F4
PF750 Series, IP21/NEMA 1 Kit, Frame 5	20-750-NEMA1-F5
PF750 Series, IP21/NEMA 1 Kit, Frame 6	20-750-NEMA1-F6
PF750 Series, IP21/NEMA 1 Kit, Frame 7	20-750-NEMA1-F7
PC Programming Tool
USB to DSI/DPI Converter with Software DriveExplorer Light Version	1203-USB
Programming Software
DriveExplorer, Full version	9306-4EXP02ENE
DriveTools SP Suite, DriveExecutive and DriveObserver	9303-4DTS01ENE
